Getting Started

Environment Setup

Before you begin, make sure you have completed the Set Up Test Environment step.

Test	https://p-gate-uat.checus.com/aggregate-pay/api/gateway/<PATH>
Production	https://pay-gate-hk-prod.checus.com/aggregate-pay/api/gateway/<PATH>

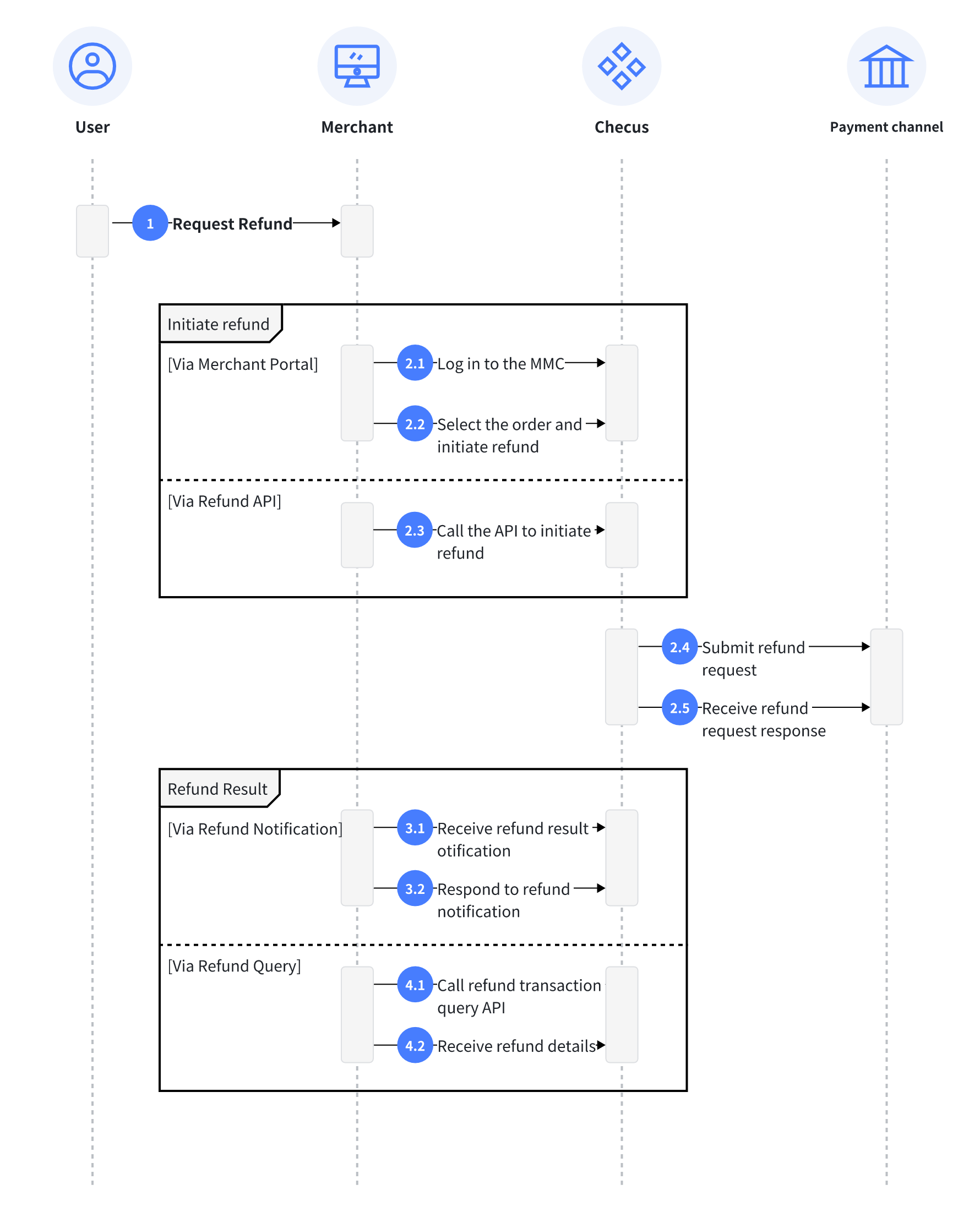

Interaction Flow

Key APIs

Interaction	Direction	API / Method
Initiate Refund	Merchant → Checus	/refund
Refund Result Notification	Checus → Merchant	/refundResultNotifyUrl
Query Refund Transaction	Merchant → Checus	/refundQuery

Integration Steps

1. Create Refund Session

Call the Refund Application/refund API to initiate a POST request to create a refund.

2. Refund Status and Result Query

After initiating a refund, Checus will submit an original path refund request to the bank or relevant institution, and notify the merchant of the refund status through the Refund Notification/refundResultNotifyUrl API.

Status	Description	Notes
REFUND_SUCCESS	Refund Successful	Channel has successfully accepted the refund application; actual settlement time is subject to channel limitations, usually within 21 days.
REFUND_PENDING	Refund Processing	Refund request has been initiated and is being processed by the channel.
REFUND_FAILED	Refund Failed	Refund could not be completed for some reason.

Method 1. Refund Result Notification

After successful refund, Checus will asynchronously callback the merchant's configured callback address, initiating the Refund Notification/refundResultNotifyUrl API. Callbacks may be sent multiple times until the merchant returns a successful response.

Callback Address Configuration Methods:

• Interface Parameter Setting: When applying for refund, pass in refundNotifyUrl. This configuration only applies to the current refund and overrides global configuration.
• Merchant Platform Setting: Configure refund callback address uniformly through Merchant Management Platform, applicable to all refunds. After receiving the payment result notification, you should return the processing result. If no response or failure is returned, Checus will retry notifications at the following intervals: 0s / 30s / 300s / 600s / 3600s / 43200s, with a maximum of 6 retries.

Method 2. Active Query Refund Results

If no notification is received or the order status is unclear, you can call the Refund Query/refundQuery API to actively query the refund status.

You can determine if the interface call was successful through code, and determine the refund status through data.status.

Avoid using msg or resultMsg to determine refund results.

Method 3. Query Refunds through Merchant Management Platform

Whether refunds are initiated through API or platform, merchants can log in to Merchant Management Platform, 'Collection Management' > 'Refund Query', to view refund status and progress.
